What is that Meshstuff anyway?

MeshTechnology is a portable, long‑range digital networking system built on LoRa radios. Each device acts as a node, automatically relaying messages for others. The result is a resilient, decentralized communication network ideal for field operations, public‑service events, and emergency scenarios.

Key Features

  • Self‑healing mesh: Every node extends coverage and fills gaps automatically.

  • Long‑range LoRa links: Multi‑mile communication with very low power usage.

  • Offline operation: Works without cell towers, Wi‑Fi, or internet.

  • GPS & mapping: Nodes can share location for team tracking and coordination.

  • Telemetry & sensors: Weather, battery, movement, and custom data modules.

  • Cross‑platform apps: Easy configuration via phone or desktop tools.

Why It Matters for Amateur Radio

MeshTechnology gives ham radio operators a hands‑on digital networking platform that complements traditional RF operations. It’s excellent for:

  • Field Day coordination

  • Public‑service events

  • Emergency communication exercises

  • Portable and backpack‑friendly deployments

  • Experimentation with digital protocols and sensors

Meshtastic and Meshcore are open‑source digital communications platforms that uses LoRa (Long Range) modulation to create low‑power, long‑distance, multi‑hop self healing mesh networks. Nodes operate in the ISM bands (typically 915 MHz in the U.S.) and exchange structured packets containing text messages, GPS data, telemetry, and sensor information. It is like packet radio on steroids.

Operation of these devices is license free and limited to 1W output. But with the use of meshed repeaters you can cover a larger area.

It can be another tool in your toolbox for emergency communication without any standard infrastructure.

What is the difference between Meshtastic and MeshCore?

Both Meshtastic and MeshCore are mature, widely used, and actively developed. The choice between them really does depend on where you are, how dense your local mesh is, and what kind of network you’re trying to build.

If you are out in a rural area and just want to communicate with a couple of friends Meshtastic is your network. In the Chicago land area with a denser population MeshCore would be the better solution.

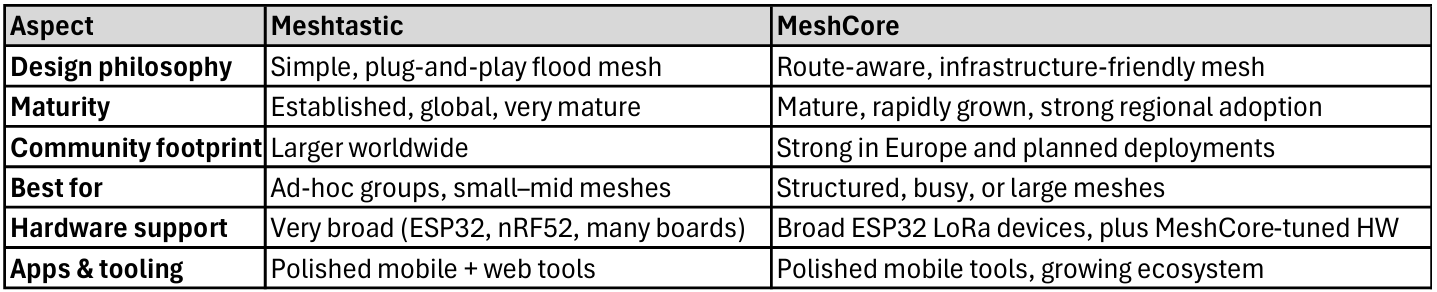

Main differences between Meshtastic and MeshCore:

The North Shore Radio Club will have an activity to help you build your own LoRa repeater.

A special meeting will be held on November 17th in the Northbrook Public Library, at 6.30pm in the Interactive Classroom.

The Interactive Classroom is located on the second floor to the left behind the Collaboratory.

At that day we will be finish building the repeaters and companion kits. We will have future activities to build more repeater and companion kits. lt will be anounced here on this page.

To reserve your space please use the form below to register.

Additional to a repeater you will need a Companion Device linked to your cellphone by Bluetooth to send and receive messages. There are two Companion Device kits offered. Both can be assembled without soldering. They are described here —>

The four different Repeater kits are described here —>

Please select all the kits you want. We will contact you about delivery and payments.

Our first Club MeshCore repeater was installed at Heller Nature Center in Highland Park

Our first of many MeshCore repeaters is no active on the roof of Heller Nature Center in Highland Park. Heller is the home of our 10m and 6m beacon and our meeting place for our monthly club meetings.

The picture shows the solar powered repeater above the 6m helo antenna for our 6m beacon.

The repeater is based on our repeater kit with a Heltec 500mW radio (28dBm) and a 8dBi colinear antenna.

The solar panel provides up to 6W to charge the two 18650 batteries.
