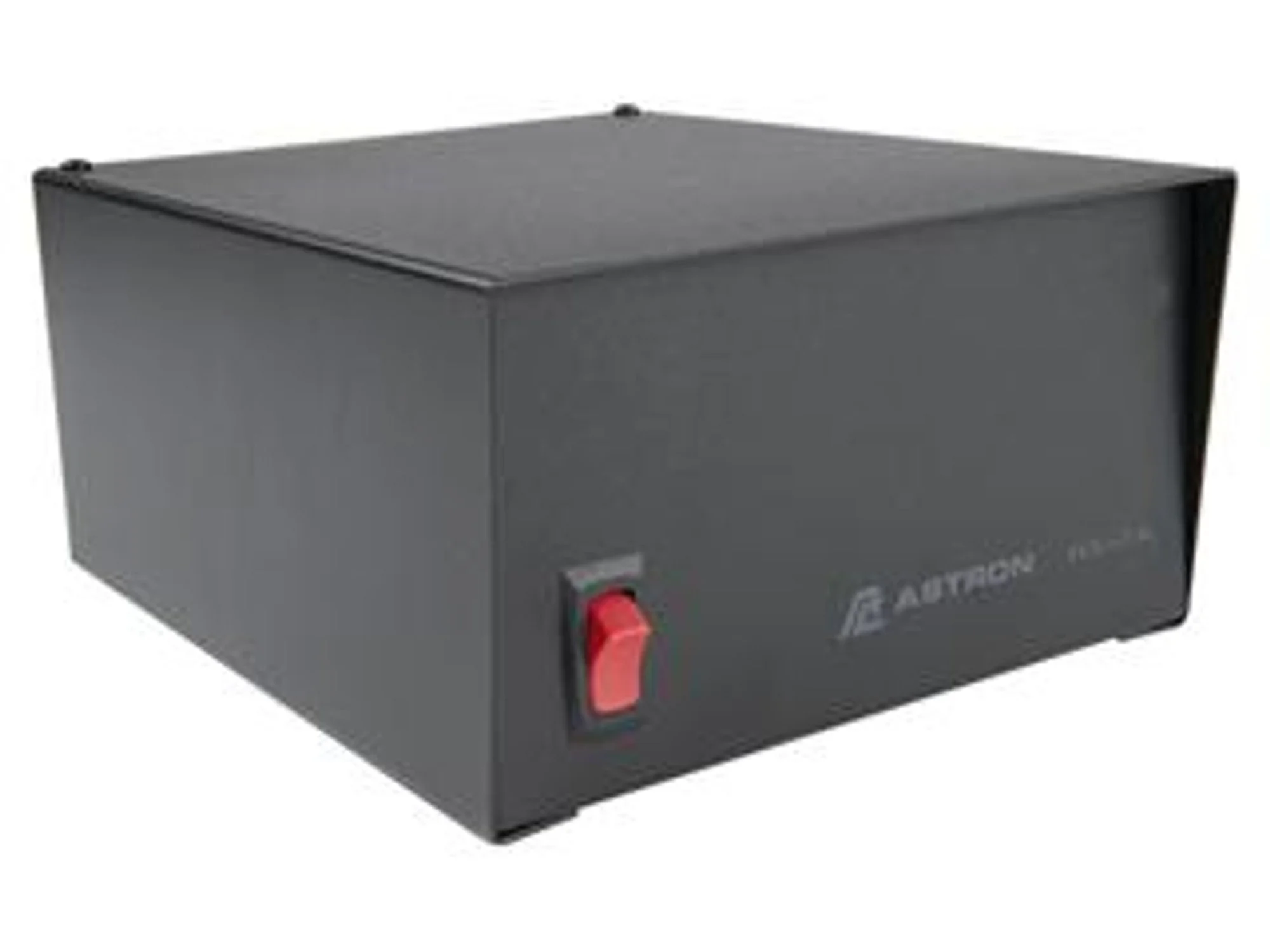

25-196 Astron RS-7A Power Supply 13.8V 5A
The Astron RS-7A is a rugged, linear-regulated desktop DC power supply delivering 13.8 VDC at 5 amps continuous (7 amps peak), ideal for powering amateur radio transceivers and other 12V equipment.
⚡ Technical Specifications
Input Voltage: 115 VAC
Output Voltage: 13.8 VDC (internally adjustable 11–15 VDC)
Current Capacity:
Continuous: 5 A
Peak/Intermittent: 7 A
Ripple Voltage: Less than 5 mV peak-to-peak (at full load and low line)
Protection Features:
Solid-state electronic regulation
Fold-back current limiting (protects against overloads and short circuits)
