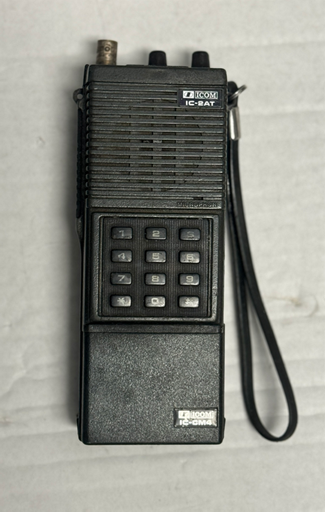

25-191 ICOM IC2AT

Amateur VHF transceiver

Frequency range:             USA   TX: 144-148 MHz   RX: 144-148 MHz

Tuning steps:      5 / 10 / 100 KHz, 1 MHz  Mode:  FM   Repeater shift / offset:         ±600 KHz

Current drain / power consumption:        RX: 20-130 mA           TX: 220-550 mA

Antenna impedance / connector:              50 ohm / BNC

Other features:  DTMF keypad.

RECEIVER SECTION

Receiver system:              Double conversion superheterodyne 1st IF: 10.695 MHz 2nd IF: 455 KHz

Sensitivity:           0.5 uV (20 dB noise quieting)  Selectivity:              15 KHz (-6 dB)

30 KHz (-60 dB)  Image rejection:

AF output power / speaker:         300 mW at ?% distortion / 8 ohm

TRANSMITTER SECTION

RF output power:

               High/ Low  1.5 W/150 mW

Estimated value $25. Offered Used: $10.
