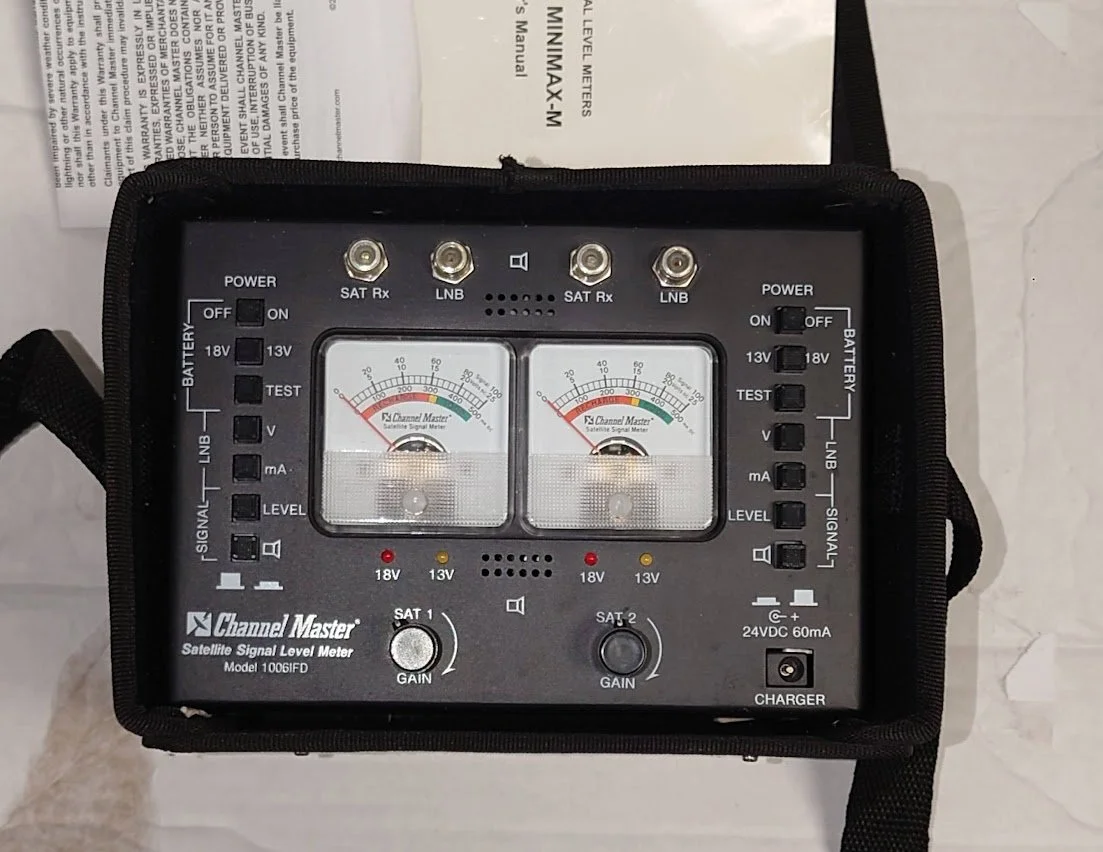

25-161 Channel Master 1006IFD
Satellite Signal Level Meter
The 1007IFD satellite signal meter has been designed for the installation and
maintenance of a satellite TV system. It features signal strength measurement by
both meter indication and audible tone indication for dish antenna peaking. LNB
voltage and current measurement is also provided. An internal, rechargeable
nicad battery pack with output switchable between 13V, 18V, 13V/22KHz and
18V/22KHz allows a dish antenna to be installed prior to installation of the
satellite receiver. The output voltage and 22KHz tone presence from a satellite
receiver may also be monitored. The internal 22KHz generator allows "alternate
satellite" selection on certain types of systems with an integrated LNB/multiswitch
