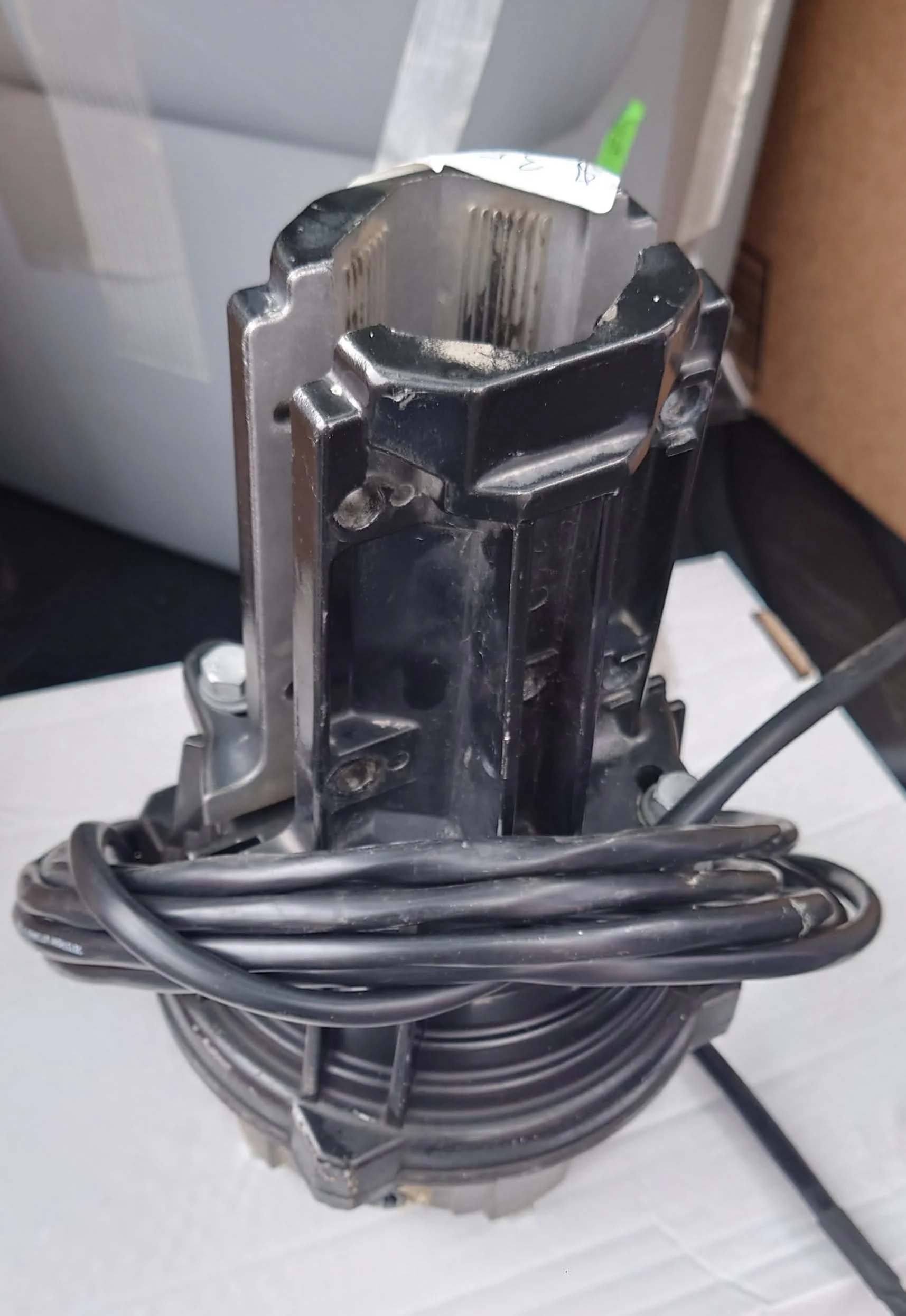

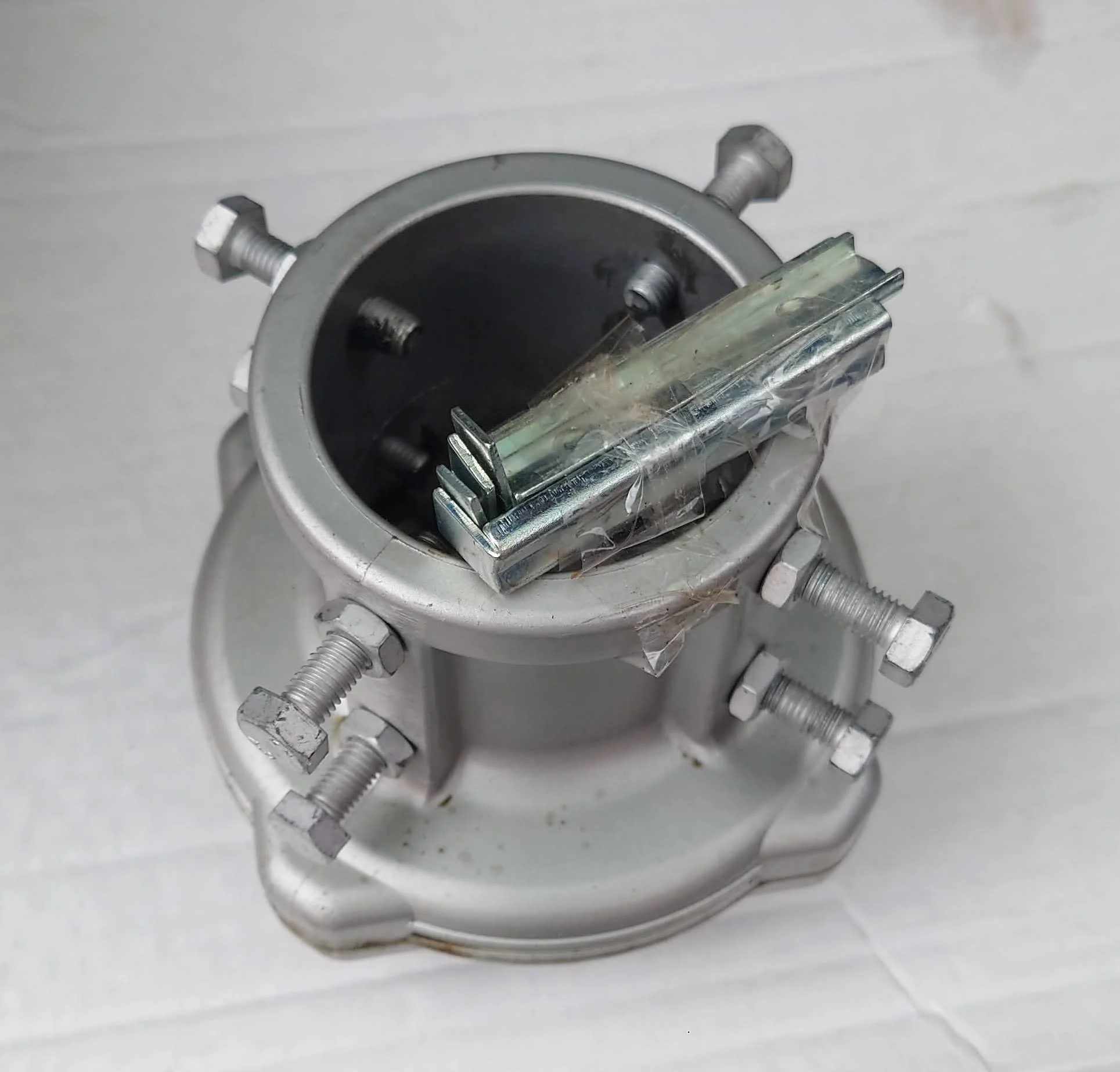

25-146 Yaesu G-800DXA and Rotator with Thrust bearing
Brand: Yaesu
Manufacturer's Part Number: G-800DXA
Part Type: Rotator Combos
Product Line: Yaesu G-800DXA Medium Heavy-Duty Rotator Systems
Wind Load Rating (Inside Tower): 21.5 sq. ft.
Rotator Turning Power: 955 in.-lbs.
Wind Load Rating (Mast Mounted): 8 sq. ft.
Directional Display Type: Position indicator
Maximum Antenna Mast Diameter: 2.480 in.
Rotator Mount Type: Tower
Rotator Brake Type: Mechanical and electrical
Rotator Brake Power: 3,472 in.-lbs.
Rotator Bearing Type: Dual race, 100 bearings
Control Cable: 6-conductor
Console Width: 7.874 in.
Console Height: 5.118 in.
Console Depth: 7.598 in.
Console Weight: 6.17 lbs.
Rotator Height: 11.811 in.
Rotator Diameter: 7.323 in.
Rotator Weight: 7.94 lbs.
